Powder Coated Crowd Control Barriers with Detachable Feets

Manufactured from pre-galvanized steel tubes, picket inserted into frame before welded, Saddle Cut Welded frame for greater strength, multi-layer protection powder coated for superior anti-rust performance with various colors available, detachable feet design maximize the space usage while transportation and storage.

Inquire Now None

PRODUCT FEATURES

ITEM SPECIFICATIONS

Detachable Powder Coated Steel Barricades

Product Name	Portable Temporary Fence, Pedestrian Barricades, Crowd Control Barriers
Applications	Secure construction sites, major public, festival, events, etc.
Material	Pre-galvanized steel tube
Panel Size	1.1mx2.1m, 1.1mx2.2m, 1.1mx2.5m, customized supported
Frame Tube Diameter	25mm, 32mm, 38mm, 42mm, 48mm
Frame Thickness	1.5mm, 1.8mm, 2.0mm
Vertical Bar Diameter	16mm, 20mm, 8mm, 6mm
Vertical Bar Thickness	1.0mm, 1.2mm, 1.5mm
Vertical Bar Spacing	60mm, 100mm, 120mm, 190mm, 200mm
Base Styles	Flat, Bridge, Triangle
Welding Technology	Picket inserted into frame before welded, saddle cut welded frame for greater strength
Surface Treatment	Multi-layer protection powder coated *
Color	Various colours available

* Zinc-rich phosphate pre-treatment ensure superior adhesion between the base material and coating, while epoxy primer coating cover all welds and cut edges for strong anti-corrosion and anti-impact, together with AkzoNobel top coating realize exceptional weather resistance with various colors available.

PRODUCTION PROCESS

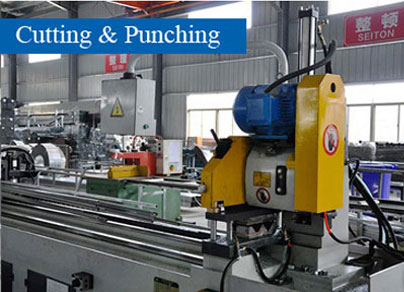

⒈ Automated Cutting, Punching & Drilling with high precision	⒉ Zinc-rich Phosphating Pre-treatment enhance the adhesion

⒊ Saddle cut welded frame for greater strength	⒋ Multi-layer Protection Powder Coated with AkzoNobel

⒌ Detachable feets for efficient transportation and storage	⒍ Pallet Packing with plastic/bubble cushion protection

FINISHED PRODUCT & PACKING

Detachable feet design maximize the space usage while transportation and storage.
